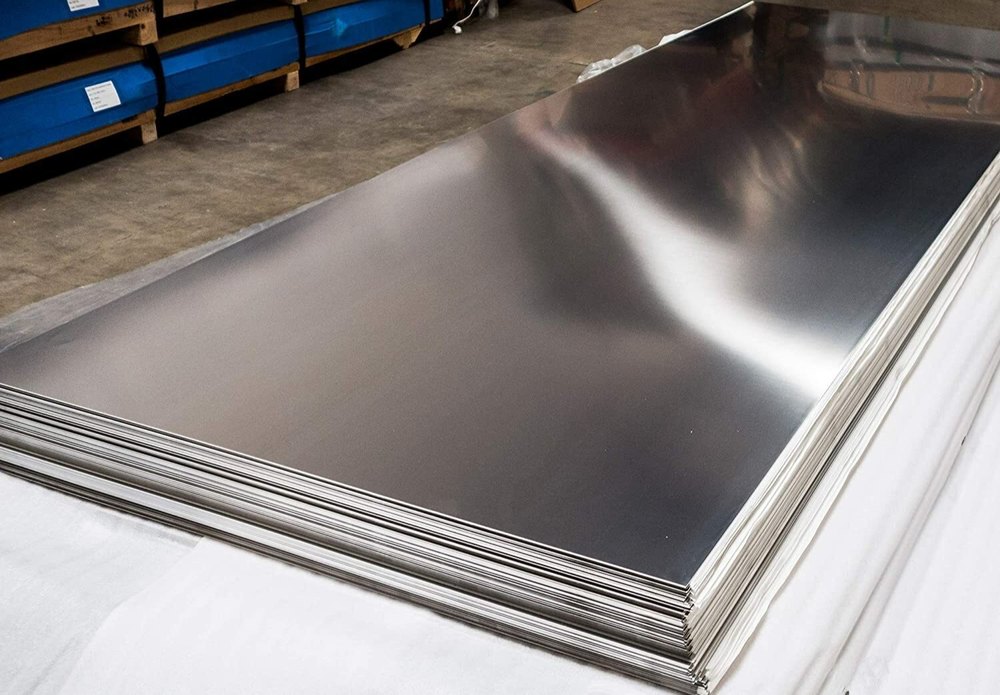

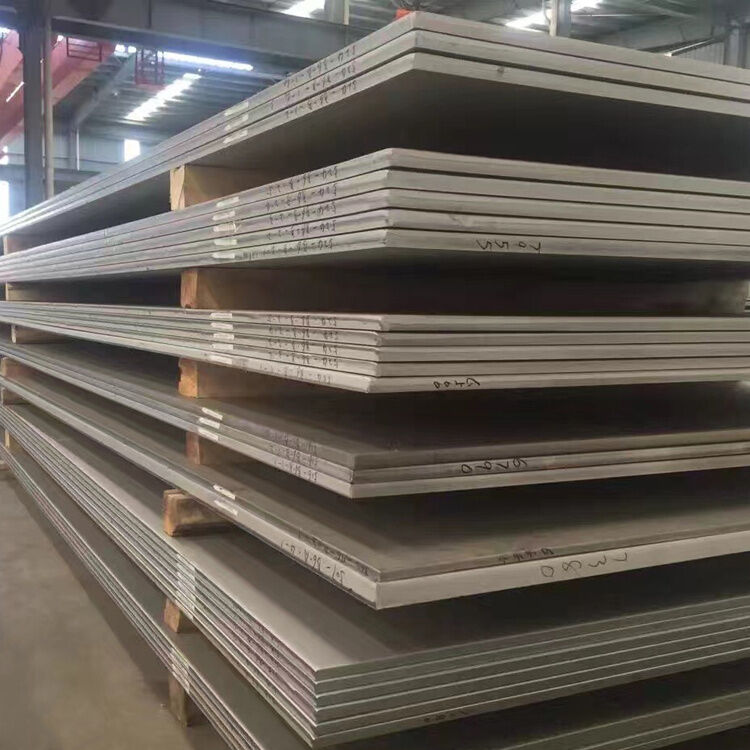

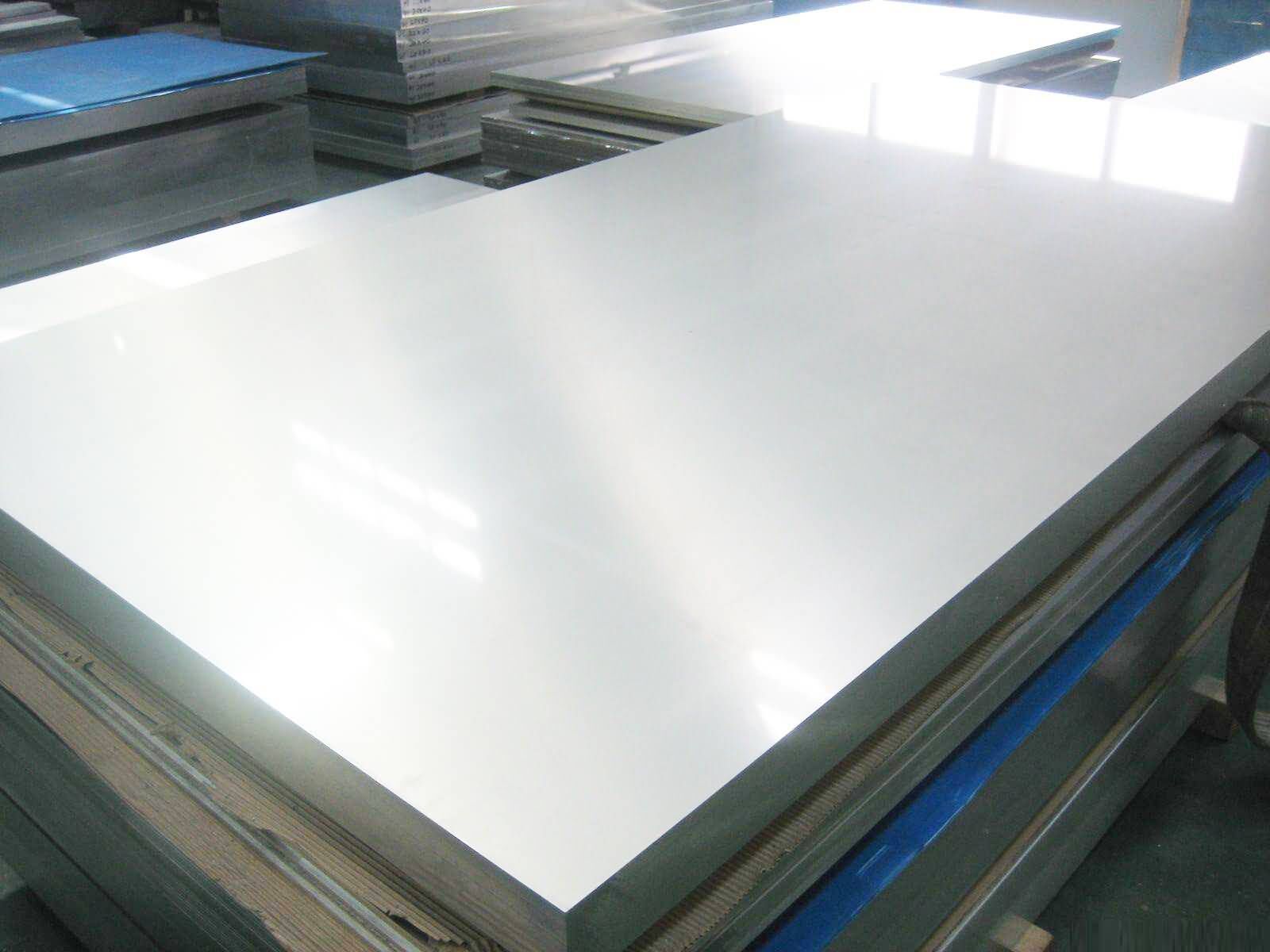

304 Stainless Steel Plate

Standard: 201, 202, 302, 304, 304L, 309, 316, 316L, 317, 321, 330, 403, 409, 416, 440C, Duplex 2507
Sizes: from 3/16" to 2" thick x 48" or 60" wide x 96/120/144 lengths
Certifications: ISO 9001,SGS,BV
Delivery Time: 7-10 Days
Payment Term: T/T, L/C, WeChat pay, Alipay, etc
Transport: Suit for all kinds of transport, or as required
WeChat:+86 13337918168
WhatsApp:+86 13337918168
Email:monica@lhsteelgroup.com
Product Detail
Stainless steel sheet & plate provide durability and corrosion resistance for long-lasting use, they have the capability of withstanding rain, acid, salt, and other corrosive substances. As stainless steel sheet has high strength, so it’s strong enough to be utilized without much thickness, helping save much cost on material consumption. Stainless steel is an environmental-friendly material as its scrap is totally reusable & recyclable. In addition to some beneficial properties, the cost of stainless steel sheet is reasonable to afford, and it’s also ideal for easy fabrication, such as cutting, forming, and joining, so it’s a versatile material to be widely used in architecture, decoration, electronic appliance, kitchenware, marine, chemical, and many other applications.



Product parameter

TypeStainless Steel Sheet / Stainless Steel Plate
Thickness0.2 – 50mm
Length2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width40mm-600mm,1000mm,1219mm,1500mm,1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
StandardASTM, AISI, JIS, DIN, EN
SurfaceBA / 2B / NO.1 / NO.4 / 4K / HL / 8K / Embossed
ApplicationArchitecture, Decoration, Kitchenware, Home Appliance, Medical Equipment, Petroleum, etc
CertificationISO, SGS.
TechniqueCold Rolled / Hot Rolled
EdgeMill Edge / Silt Edge
QualityMill Test Certificate supplied with the shipment, third part inspection is acceptable
Grade(ASTM/UNS)201, 304, 304L, 321, 316, 316L, 317L, 347H, 309S, 310S, 904L, S32205, 2507, 254SMOS, 32760, 253MA, N08926
Grade(EN)1.4301, 1.4307, 1.4541, 1.4401, 1.4404, 1.4571, 1.4438, 1.4539, 1.4547, 1.4529, 1.4562, 1.4410, 1.4878, 1.4845, 1.4828, 1.4876, 2.4858, 2.4819



Stainless steel is a great choice for home and commercial kitchen equipment, appliances, construction, engineering, and so on. If you're looking for a material that is corrosion-resistant, durable, and easy to maintain, stainless steel is the way to go.



Product Specification and Size (For Reference)


ASTMJISAISIENMill's Standard
GradeS30400 S30403 S31603 S43000SUS304 --SUS430304304L316L4301.4301 1.4307 1.4404 1.4016202204Cu3

Other specifications are also available up to request



Available Size

ThicknessWidthLengthSurface Finish
15~85 mm914, 1219, 1524 mm3048, 6069 mm10 MBlack
3~8 mm20~1524 mmContainer Loading:Max. 10MBulk: as requestNo.1
8 up ~ 60 mm30~1524 mmMax. 6096 mmNo.1



Application

Linghang. stainless steel plate is an extremely popular mills processed material that offers good corrosion resistance for numerous types of applications. Stainless steel plate is widely used in internal equipment, walls, pressure vessels and marine applications. 430 stainless steel plate is suitable for dry or internal environment equipment. 304 stainless steel plate is suitable for outdoor walls or windows. 316 stainless steel plate is suitable for the pressure vessel of industrial and marine applications.



Dimension and Shape Tolerance

Thickness Tolerance: According to 1/2 JIS G4304
ThicknessTolerance
8.0 mm < T ≦ 10.0 mm±0.32 mm
10.0 mm < T ≦ 25.0 mm±0.34 mm
25.0 mm < T ≦ 85.0 mm±0.40 mm



Length Tolerance: According to 1/2 JIS G4304
ThicknessTolerance
T ≦ 10.0 mm-0 / +60 mm
10.0 mm < T ≦ 85.0 mm-0 / +65 mm

Width Tolerance: Max. Aim ±10 mm
Edge Crack: Max. 5 mm per side



FinishDescription
No. 1Dull, rough, uneven appearance. Most suitable for industrial applications.
2BDull grey slightly reflective finish. Most widely used cold rolled mill finish.
4BUniform direction brushed look, not highly reflective. A good general purpose finish.
Hairline (HL)Well-defined directional finish with long and fine lines.
Bright Annealed (BA)Cold rolled, annealed in a controlled atmosphere to retain a highly reflective and mirror-like finish.
No. 8 (Mirror)Most reflective surface available. Used for cosmetic applications such as mirrors and reflectors.





If you are interested in our Stainless Steel Plates/Sheets:

201,202,302, 303, 304, 304L, 304H, 309, 309S, 310, 310S, 310H, 316, 316L, 317/317L, 317LMN, 321, 321H, 330, 347, 347H, 904L, 403, 405, 409, 410, 410S, 410/HT, 416, 416HT, 420, 422, 430, 440C, Duplex 2205, Duplex 2304, Duplex 2507.

Please Feel Free to Contact With Us!
