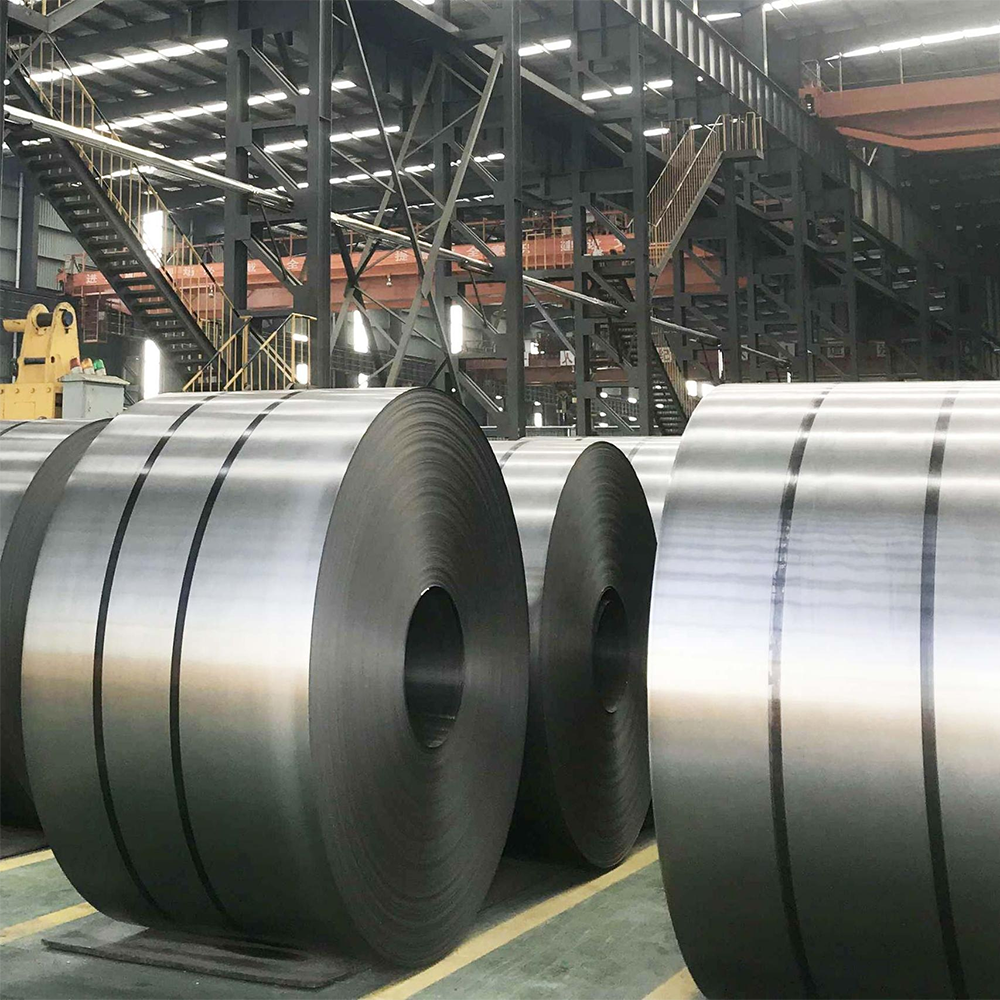

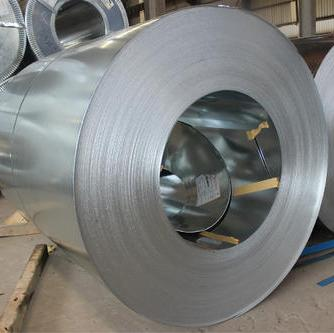

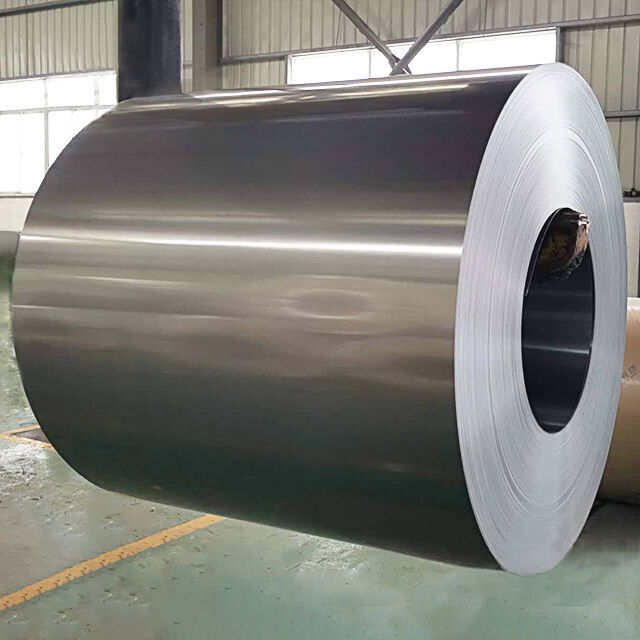

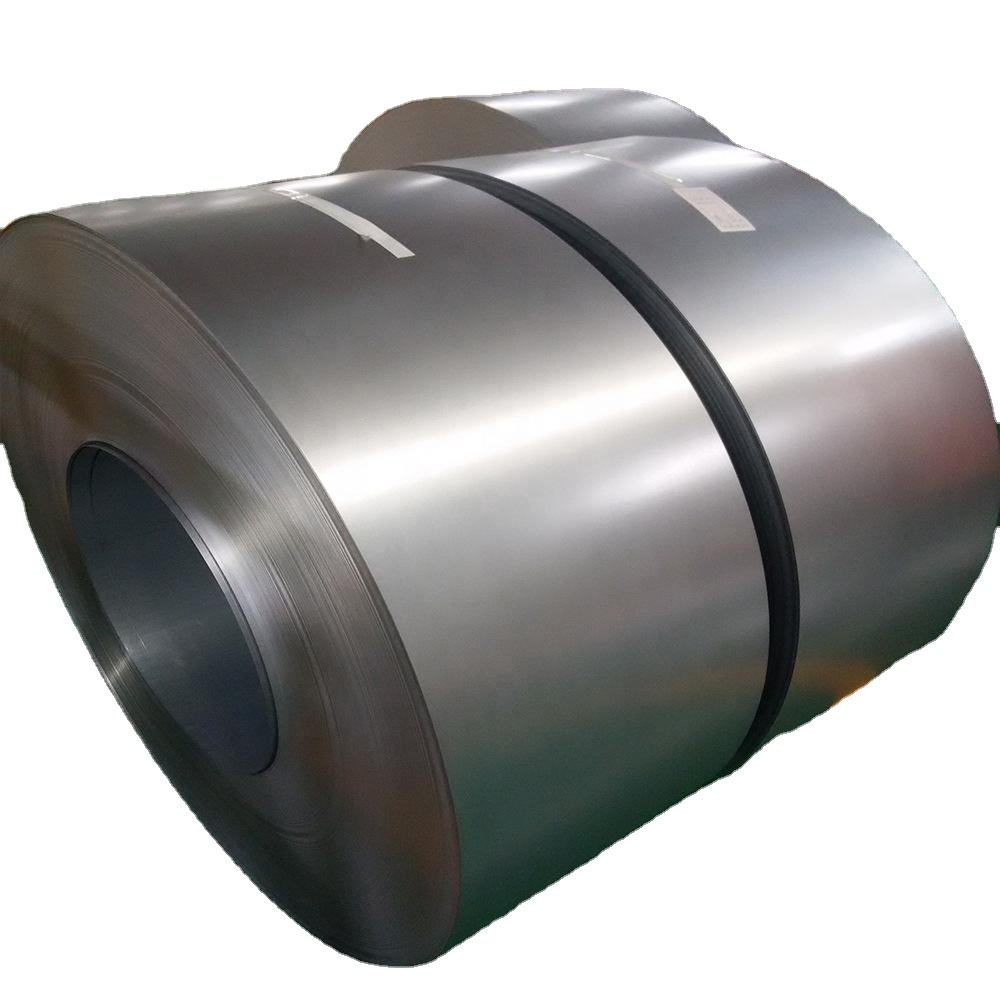

H23Q Silicon Steel

Type: Oriented Silicon Steel
Material Grade: CRNO 50W470/600/800
Certifications: ISO9001
Delivery Time:7 Days
Payment Term: T/T, L/C, WeChat pay, Alipay, etc
Application:Widely used in transformers, generators, various household motors and micro-motors, etc
Packaging Details:Standard seaworthy export packing or according to the customers' request
OEM/ODM
WeChat:+86 13337918168
WhatsApp:+86 13337918168
Email:monica@lhsteelgroup.com
Product Detail
Shandong Linghang Steel Group Co., Ltd is proud to supply high quality Silicon Steel. We are one of China's leading steel mill manufacturers, and we promise our customers reliable quality, quick delivery and excellent post-sales service.

If you want to know more about Silicon Steel or Silicon Steel price please feel free to contact us, we will reply you within 24 hours



Parameter

Product NameCold Rolled Grain Oriented Silicon Steel
StandardB23G110, B27G120, B35G155, B23R080-B27R095
Thickness0.23mm-0.35mm
Width20mm-1250mm
LengthCoil Or As Required
TechniqueCold Rolled
Surface TreatmentCoated
Special UseSilicon Steel
SampleFor Free (Within 10 KG)



PRODUCT CATEGORY

The magnetic characteristics and technical characteristics Of the normal oriented electrical steel belt (sheet)

Nominal thickness(mm)GradeTheoretical density(kg/dm³)Maximum iron loss P1.7/50(w/kg)Minimum magnetic induction J800(T)Minimum stacking factor(%)
0.23H23Q110H23Q1207.651.101.201.830.945
0.27H27Q120H27Q1301.201.300.950
0.30H30Q120H30Q1301.201.300.955


The magnetic characteristics and technical characteristics Of high permeability-oriented electrical steel belt (sheet)

Nominal thickness(mm)GradeTheoretical density(kg/dm³)Maximum iron lossP1.7/50(w/kg)Minimum magnetic induction  J800(T)Minimum stacking factor(%)
0.23H23QG085H23QG090H23QG095H23QG1007.650.850.900.951.001.880.945
0.27H27QG090H27QG095H27QG100H27QG1107.650.900.951.001.101.880.950
0.30H30QG105H30QG110H30QG1207.651.051.101.201.880.955



The magnetic properties and technical characteristics Of the oriented electrical steel belt (strip) Of magnetic domain refinement level (laser engraving)

Nominal thickness(mm)GradeTheoretical density(kg/dm³)Maximum iron lossP1.7/50(w/kg)Minimum magnetic induction  J800(T)Minimum stacking factor(%)
0.23H23QH080H23QH085H23QH090H23QH1007.650.800.850.901.001.890.945
0.27H27QH085H27QH090H27QH095H27QH1000.850.900.951.000.950
0.30H30QH095H30QH100H30QH1100.951.001.100.955



Cold Rolled Oriented Silicon Steel

        The main purpose of cold-rolled oriented silicon steel strip is for transformer manufacturing, so it is also called cold-rolled transformer silicon steel. Compared with cold-rolled non-oriented silicon steel, oriented silicon steel has strong magnetic directionality; it has superior high magnetic permeability and low loss characteristics in the rolling direction of easy magnetization. The iron loss of the oriented steel strip in the rolling direction is only 1/3 of the transverse direction, the magnetic permeability ratio is 6:1, and the iron loss is about 1/2 of the hot rolled strip, and the magnetic permeability is 2.5 times of the latter .



        High magnetic induction cold-rolled silicon steel strips are all single-oriented steel strips, which are mainly used in the manufacture of electromagnetic components such as transformers and chokes in the telecommunication and instrument industries. There are two main characteristics of its application. One is that under the condition of low current, that is, weak magnetic field, the material is required to have high magnetic properties in the range of weak magnetic field, that is, high μ0 value and high B value; the second feature is the frequency of use High, usually above 400Hz, even up to 2MHz. In order to reduce the eddy current loss and the effective permeability under an alternating magnetic field, a thin strip of 0.05-0.20mm is generally used.
