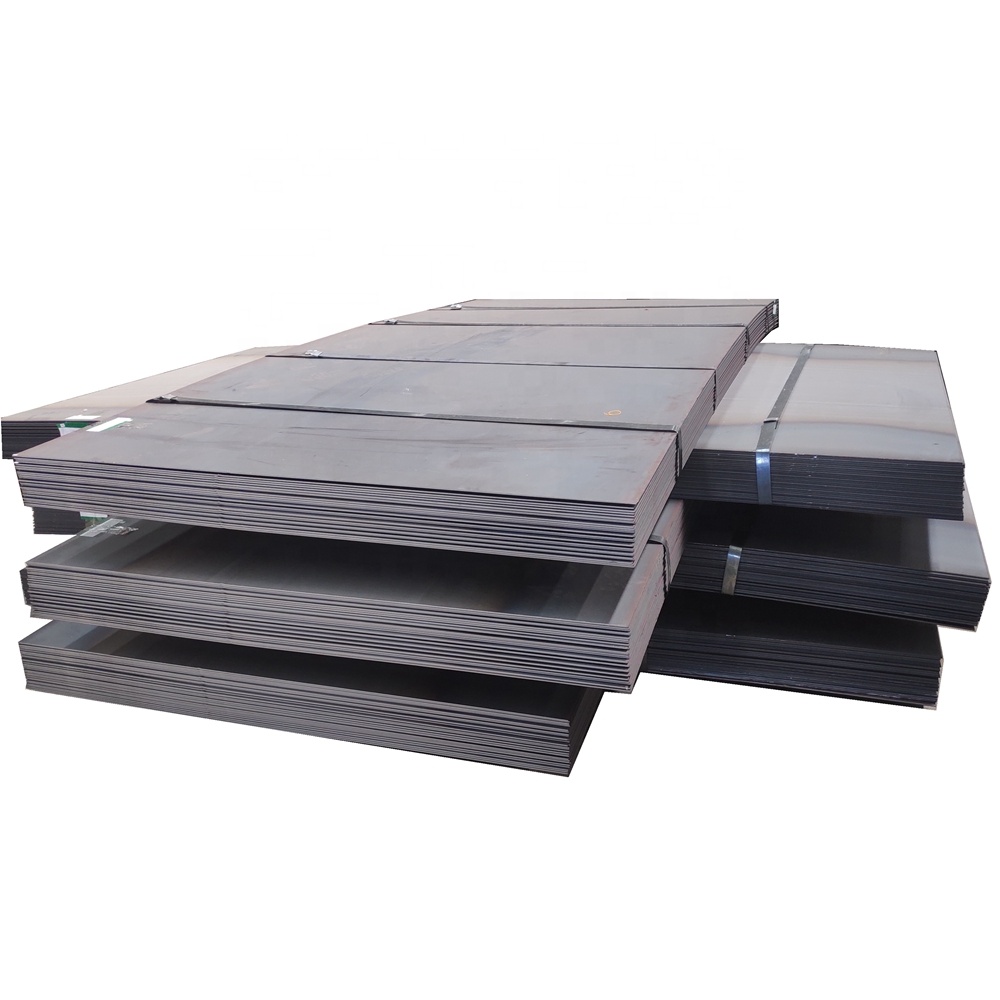

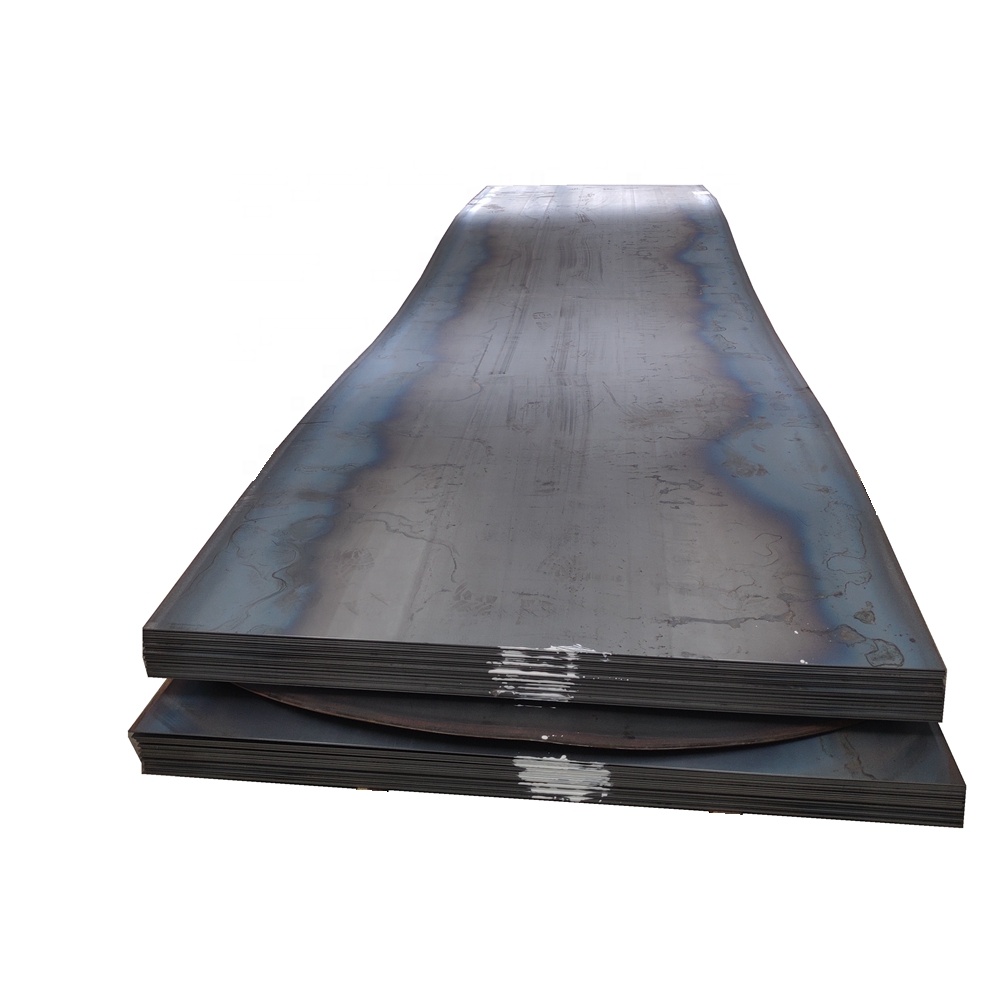

ASTM A36 Carbon Steel Plate

Standard:
ASTM A36, ASTM A283, ASTM A572, ASTM A656, JIS G3101 SS400, EN10025-2, DIN 17100, DIN 17102, GB/T700, GB/T1591
Surface Treatment: Oiled, black painted, shot blasted, hot dipped galvanized
Certifications: ISO 9001,SGS,BV
Delivery Time: 7-10 Days
Payment Term: T/T, L/C, WeChat pay, Alipay, etc
Transport: Suit for all kinds of transport, or as required
WeChat:+86 13337918168
WhatsApp:+86 13337918168
Email:monica@lhsteelgroup.com
Product Detail

Carbon steel plates are available in different grades depending on the carbon content and strength.

There are low, medium, and high carbon steel plates. The more carbon content, the more durable and stronger the plate becomes. There are further sub-categories depending on thickness and usage as well as the formation process. Usually carbon steel plates vary from 0.4 mm to 80 mm in thickness and 1000 mm to 45000 mm width, and they can be of length up to 18 meters. But the length is customizable which helps the customers to put them into various applications.

Specification

Product Name

carbon steel plate/ carbon steel sheet

Standard

ASTM A285, ASTM A283, SA516, SA517, EN10025-2-2004, ASTM A572, ASTM A529,ASTM A573, ASTM A633, JIS G3101-2004, ASTM A678 ASTM A588, ASTM A242,etc

Material

A36,SS400,A283 Gr.A,.Gr.B.Gr.C,A285 Gr.A,.Gr.B.Gr.C,Q235,Q195,Q215,S185,SM400,

S235J0,S235JR,S235J2,Q275,Gr50,GR55,GR.65,GR.A,

S275JR,S275J0,E295,SS490

SS540,GR.60,GR.70,S355J0,SM570,E335,S235J2W,Q355,SMA490,S355J2W,

Q265,P235GH,SB410,SPV235,SGV410,SG255,P265GH,SB450,SG295,P295GH,etc

Size

Thickness:6.0-400mm

Width:1250mm,1500mm,1800mm,2000mm,2200mm,2500mm,etc

Length:1000mm,1500mm,2000mm,2438mm,3000mm,6000mm,8000mm,10000mm,

12000mm,etc

Surface

Black painted,PE coated,Galvanized ,mild steel; plain finish,etc

Export Country

Poland ,India,Dubai,Peru,Saudi Arabia,Indonesia,Singapore,Korea,Viet Nam,Thailand,Brazil,

Ukraine,Canada,South Korea,South Africa and so on.

Application

Steel plates are widly used as boiler plate, container plate, flange plate and ship plate, andwidly used in building construction. The size of steel plate can be made according toclients requirements.

Carbon Structural Steel Plate

It is mostly used in construction industry and hence, the quality, durability, and performance have to be of highest standard. They have to withstand overweight load and pressure and must be corrosion resistant. It is known by the name construction steel plate.

Boiler Steel Plate

These are high-pressure plates generally used in designing vessels, boilers, and heat containers. Carbon boiler steel plates have low corrosive property and can withstand low heat. Several layers of either chromium or nickel are added to make it suitable for usage in various environments.

Tanks Steel Plate

These plates are used for building of oil and gas tanks, storage tanks, water tanks, and tanks for storage other all kinds of stuffs.

Carbon content (wt.%)

Microstructure

Properties

Examples


Low-carbon steel

< 0.25

Ferrite, pearlite

Low hardness and cost. High ductility, toughness, machinability and weldability

AISI 304, ASTM A815, AISI 316L

Medium-carbon steel

0.25 – 0.60

Martensite

Low hardenability, medium strength, ductility and toughness

AISI 409, ASTM A29, SCM435

High-carbon steel

0.60 – 1.25

Pearlite

High hardness, strength, low ductility

AISI 440C, EN 10088-3

Carbon content levels for each of carbon steel plate

Low carbon steel plate: For carbon content 0.06% to 0.25%, also we call it mild steel plate.

Medium carbon steel plate: C content from 0.25% to 0.55%.

High carbon steel plate: 0.55% to 1.0%, also called hard steel plate.

As the content of Carbon increase, the steel plate hardness increases.

What Are The Different Types Of Carbon Steel Plates Available?

Carbon steel plates have versatile applications in different industries. It is classified according to the carbon content from low to high. It is also classified according to their usage and application. Different types of carbon steel plates are used in machinery and production companies as the base material for component construction. Its durable property makes it ideal for various manufacturing parts. Apart from carbon steel plate, there are vessel steel plate, shipbuilding or construction steel plate, structural steel plate, pipeline and stainless steel plate.

Carbon Steel Sheets / Plates Chemical Composition

Grades

Carbon

Manganese

Phosphorus

Sulfur

Silicon

A516 Grade 70 >2” & ≤4” thick

0.30%

0.85-1.20%

0.025%

0.025%

0.15-0.40%

A516 Grade 70 >4” thick

0.31%

0.85-1.20%

0.025%

0.025%

0.15-0.40%

A830-1045

0.43-0.50%

0.60-0.90%

0.030%

0.030%

N/A



Mechanical Properties of Carbon Steel Sheets / Plates

 Grades

Yield Point

Tensile

A516

36 ksi

58-80 ksi



Physical Properties of Carbon Steel Sheets / Plates

Physical Property

Metric

Imperial

Density

7.85 g/cm3

0.284 lb/in3



Carbon Steel Sheets/Plates Available Types

Carbon Steel Perforated Sheets

Carbon Steel CR Sheets

Carbon Steel ASME SA786 Plates

Carbon Steel HR Plates

ASME SA283 Carbon Steel Sheets

Carbon Steel Polished Plates

ASTM A283 Carbon Steel Plates

Carbon Steel Mirror Sheets

Carbon Steel C1045 Sheets

Carbon Steel Plate

Carbon Steel SA516 GR 70 (N) Plates

Carbon Steel Grade 70 Sheet

Carbon Steel C1020 Sheet

Carbon Steel Grade 65 Plates



What standards referred to carbon steel plate

Carbon steel plate almost include all the common standards of steel plate/sheet.

1. ASTM A36 plates – The most common standards of carbon steel plate

2. ASTM A283 Grade A, B, C – Also most common material in carbon structural.

3. ASTM A516 – For boiler, vessel steel plate.

4. ASTM A537 – For heat treated carbon steel plate in fusion welded pressure vessels and structural steel plates.

5. ASTM A573 – A kind of structural steel plate with carbon-manganese-silicon.

6. ASTM A572 – ASTM A572 plate mechanical strength is higher than A36. Where with lower weight.

7. ASTM A737 – For boiler, pressure vessels steel plate of low alloy steel.

and etc..



So carbon steel plates have a widely coverage for different types of steel plates in different industries.



Linghang has carbon steel plate on sale, with very competitive prices from China, if you have any projects required for above plates, just contact us for a good offer !!!
